Year 2 Project: Slave Computer Development

Link to Chinese Version.

In embedded development, Slave computers typically don’t participate in decision-making and serve as actuators or sensors.

In this project, each module functions as a slave computer executing instructions from the host computer.

Development Setup

• Slave computer: Arduino Uno
• Host computer: Raspberry Pi 5

Code Design

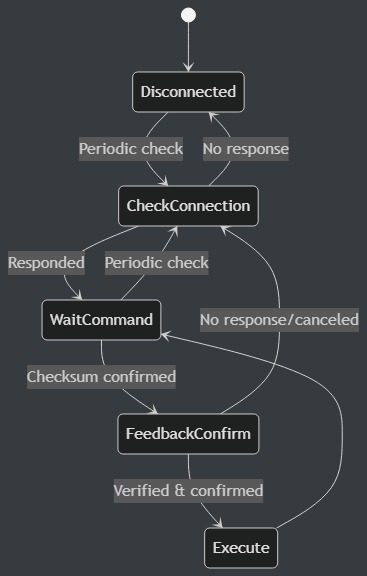

State computer Design

The slave computer doesn’t make decisions and can be treated as a state computer:

stateDiagram-v2
    [*] --> Disconnected
    Disconnected --> CheckConnection: Periodic check
    CheckConnection --> Disconnected: No response
    CheckConnection --> WaitCommand: Responded
    WaitCommand --> CheckConnection: Periodic check
    WaitCommand --> FeedbackConfirm: Checksum confirmed
    FeedbackConfirm --> Execute: Verified & confirmed
    FeedbackConfirm --> CheckConnection: No response/canceled
    Execute --> WaitCommand

Communication Protocol Design

• Physical layer (Communication Channel): UART over USB

  Advantages:

  • Easy operation
  • Reliable USB connection

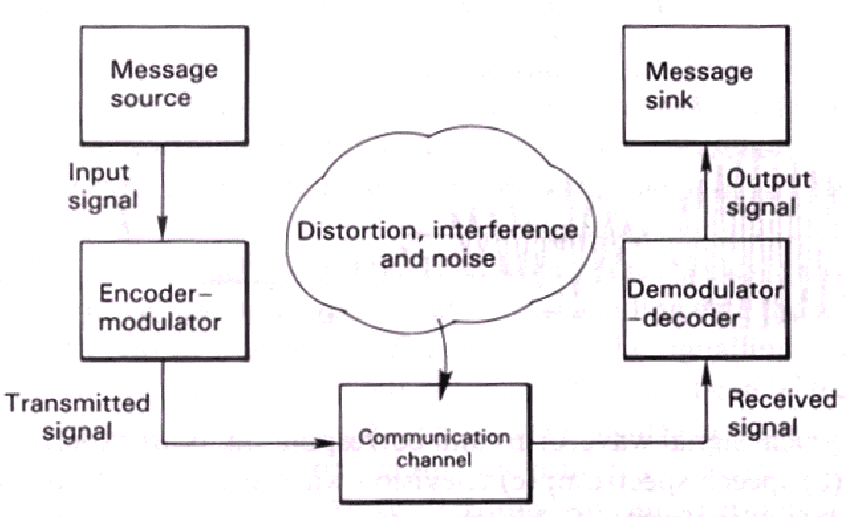

• Data packet structure (Encoder-modulator/”Link Layer”):

packet-beta
title UART Packet
0-7: "Start Byte"
8-15: "CRC"
16-79: "Data"
80-87: "Stop Byte"

• Application layer (Message Source):

  Packet size: 16 bytes (designed for Python compatibility, equivalent to two int types):

  struct __attribute__((packed)) STRUCT_Message {
      int32_t msg_type;
      char data[4];
  } Message;


• Connection protocols:

  1. ping: Test host computer availability
  2. wait: Notify host computer of standby status
  3. command: Instruction execution cycle

Protocol details available in the Year 2 Project Slave Computer Wiki.

Debugging Design

With no display/terminal, the onboard LED indicates status:

• Blinking: No connection
• Steady: Connected

The following figure is a screenshot of the protocol design during development (translated by Google):

Issues & Solutions

Serial port occupation during programming

Analysis: Conflict between host computer process and programming process

Solution: Manually close host computer process before programming

Intermittent connectivity

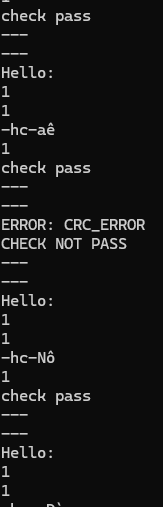

Analysis: CRC validation failures (observed via serial debugging)

Solution: Track last 8 ping records - consider connected if majority succeed

Testing

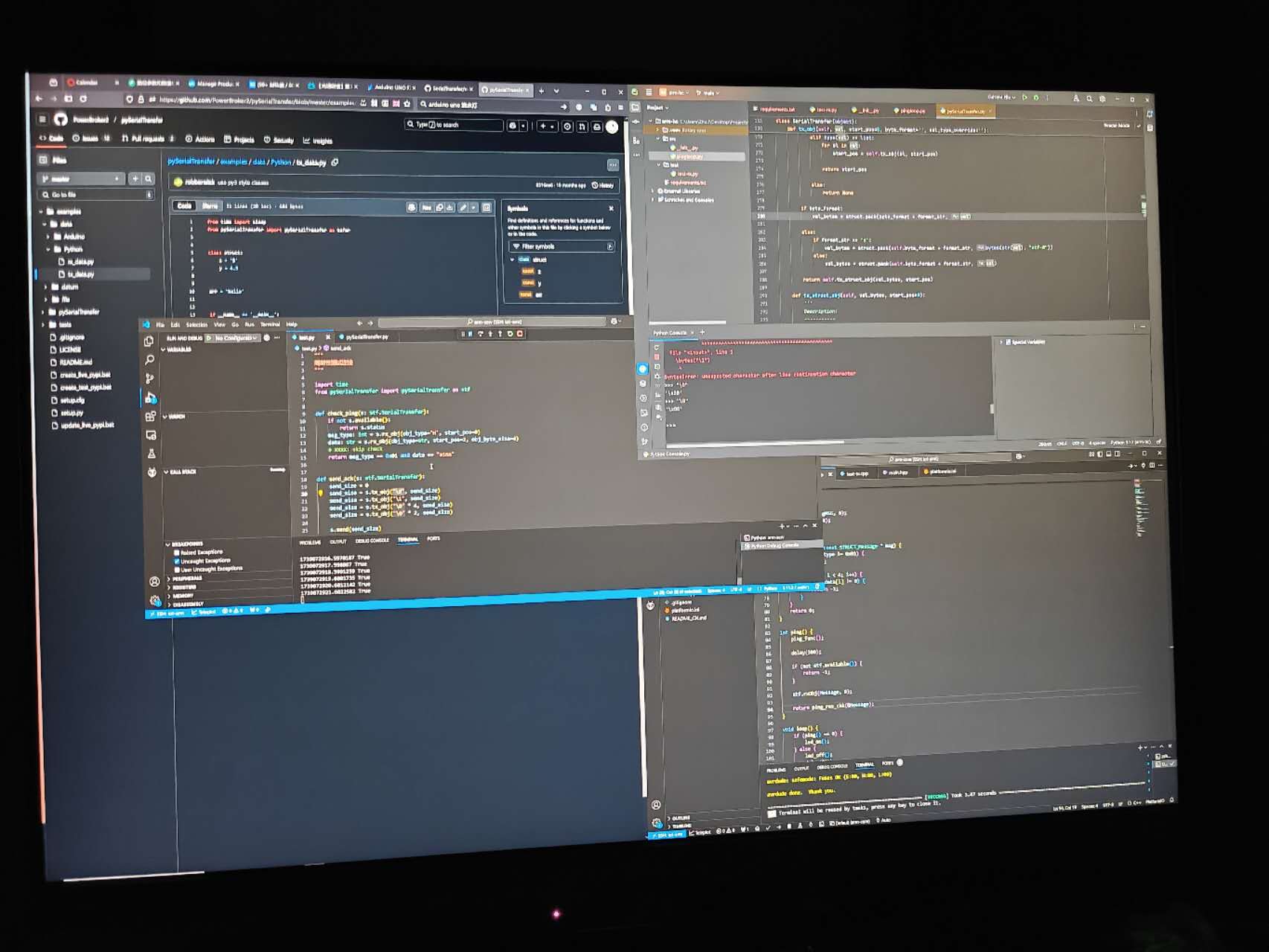

Connection test: Verify slave computer status changes when host computer starts/stops

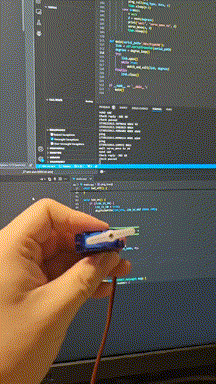

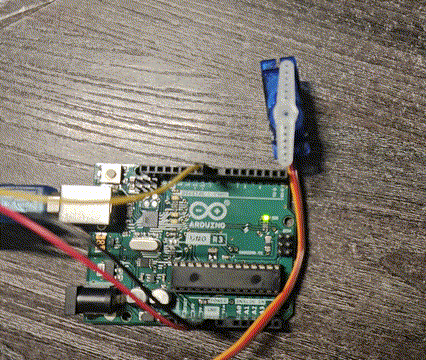

Servo control test: Validate host computer command execution

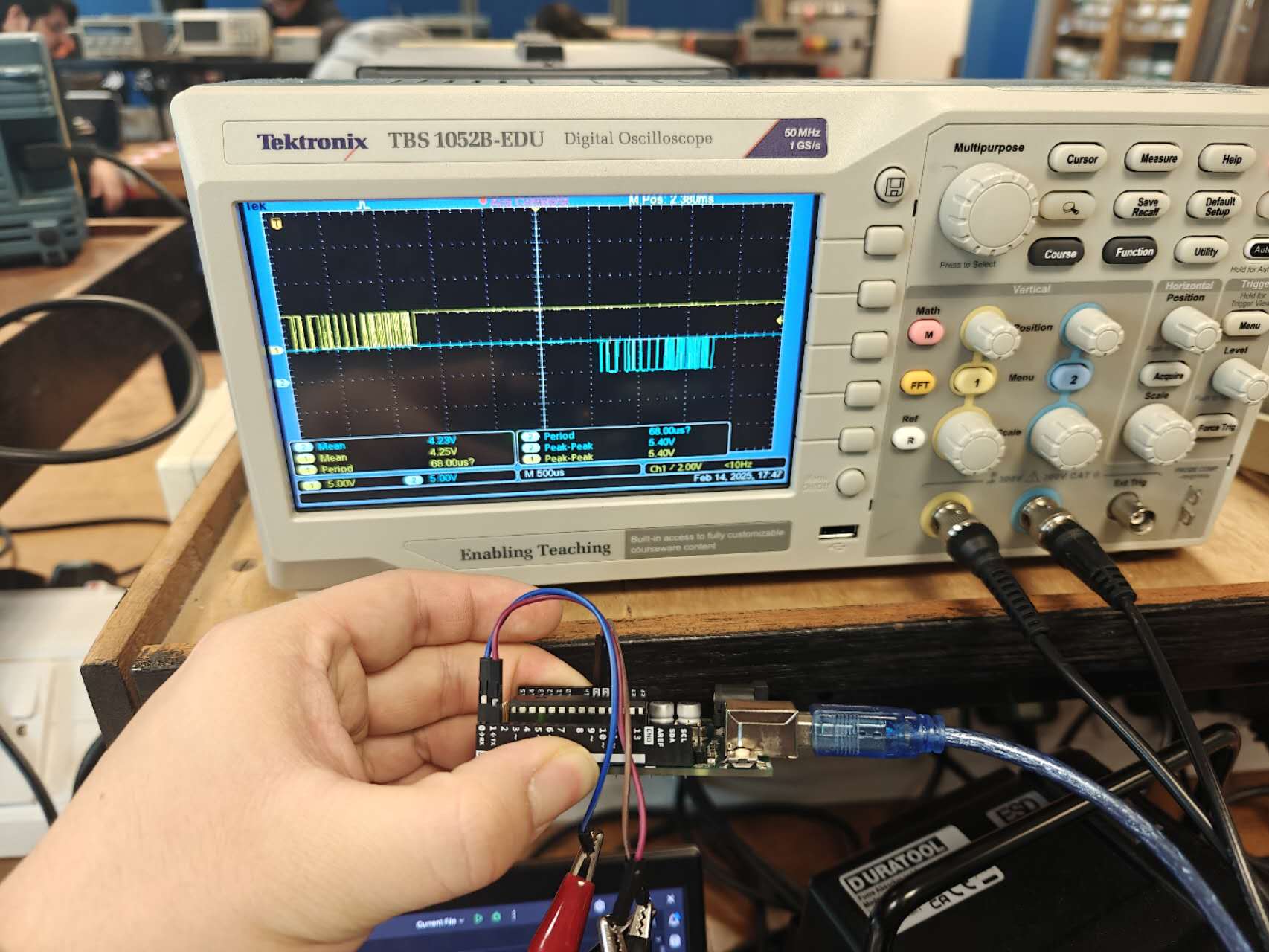

Serial message capture: Oscilloscope verification of communication

Synchronized testing with host computer - see Host Computer Development Blog for details.
