In embedded system development, the host computer refers to the device that interacts with the slave computer, typically acting as the controller.
In this project, the host computer uses a Raspberry Pi 5, and the salve computer is an Arduino Uno, connected via USB.
Code Design
The workflow of the host computer can be simplified as: responding to salve computer requests.
- Reply with connection confirmation when receiving ping command
- Send instructions from the command queue when receiving WaitCommand
- Requeue instructions when receiving execution failure reports
stateDiagram
[*] --> WaitForRequest
WaitForRequest --> HandlePing : Receive ping command
HandlePing --> WaitForRequest : Send connection response
WaitForRequest --> HandleWaitCommand : Receive WaitCommand
HandleWaitCommand --> WaitForRequest : Send next instruction
WaitForRequest --> HandleFailure : Receive failure report
HandleFailure --> WaitForRequest : Requeue instruction
state HandlePing {
Send_connection_response
}
state HandleWaitCommand {
Check_command_queue
Send_next_instruction
}
state HandleFailure {
Log_error
Rollback_command_to_queue
}
Additionally, to package the host computer as an SDK, we configured pyproject.toml for easy distribution as a Python module.
Issues & Solutions
Parameter Parsing Exception
Analysis: salve computer packets only use first 8 bytes as valid data, causing parsing issues in Python’s strong typing system which requires handling all 16 bytes.
Solution: Modify salve computer to write zeros in unused bytes.
Serial Port Not Found
Analysis: Development environment used Linux (Raspberry Pi OS) via VS Code Remote, while debugging used Windows (laptop).
Solution: Add serial port parameter configuration in test code.
Testing

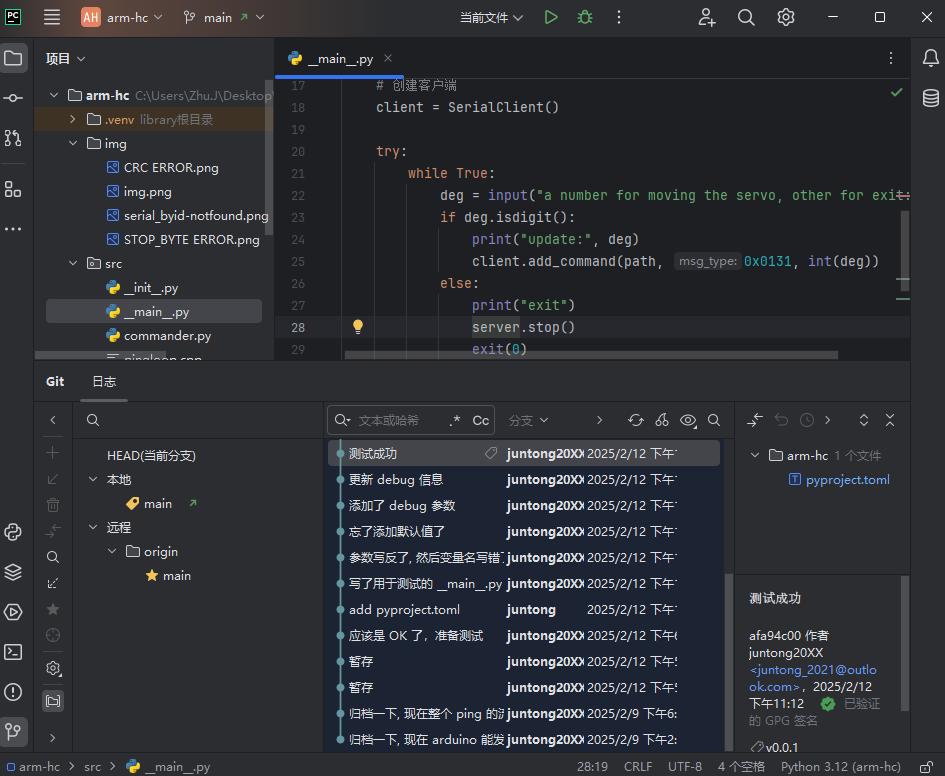

Created test programs in /test directory that:
- Prompt for serial port address
- Create command queue using Python built-in list
- Pass queue and port address to communication function
- Run as separate thread
- Enter main loop accepting servo rotation degree inputs
host and salve computer testing is synchronized. Refer to the salve computer development blog for more details.

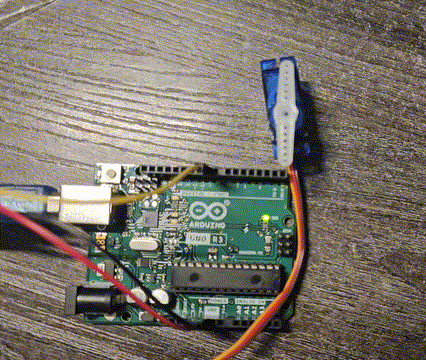

Below is a screenshot from testing video:
