Year 2 Project: Frontend Development

Link to Chinese Version.

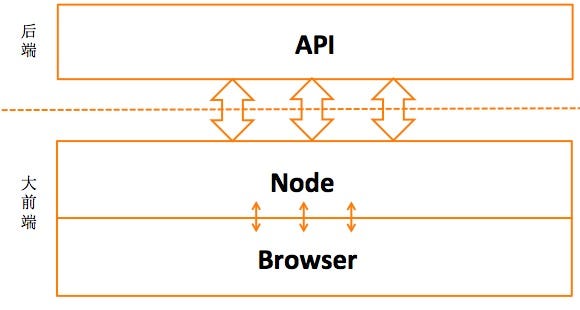

The project adopts a frontend-backend separation design. The frontend uses Vue framework with Node.js as the development environment.

Project Structure

.
├─public
├─src
│ ├─assets
│ └─components
├─index.html
├─jsconfig.json
├─package.json
└─vite.config.js

Each feature is implemented as an independent page, with each page being a Vue Component file.

Functionally divided into two parts: Control Interface and Login Interface.

Control Interface

Purpose: Real-time display of connected module names, sensor parameters, and user operations.

Frontend Design

• Display data in a table format
• Utilize Vue’s dynamic reactivity for real-time table updates
• Color-coded operation prompts:
  • “Update” in green
  • “Logout” in red
  • Success/failure indicators with corresponding colored close buttons

API Design

• Two main operations:
  • GET for module list retrieval
  • PUT for action submission

Example using axios:

await axios.put(`${this.backendUrl}/items`, { key: item.key, value: item.value })

Testing Issues & Solutions

1. Real-time refresh requirement

   Solution: Implement timer function after login for backend polling

   Optimization: Avoid refresh during user focus or value modification

2. Value inconsistency between display and actual parameters

   Solution: Add warning text for unsaved changes

Interface Preview

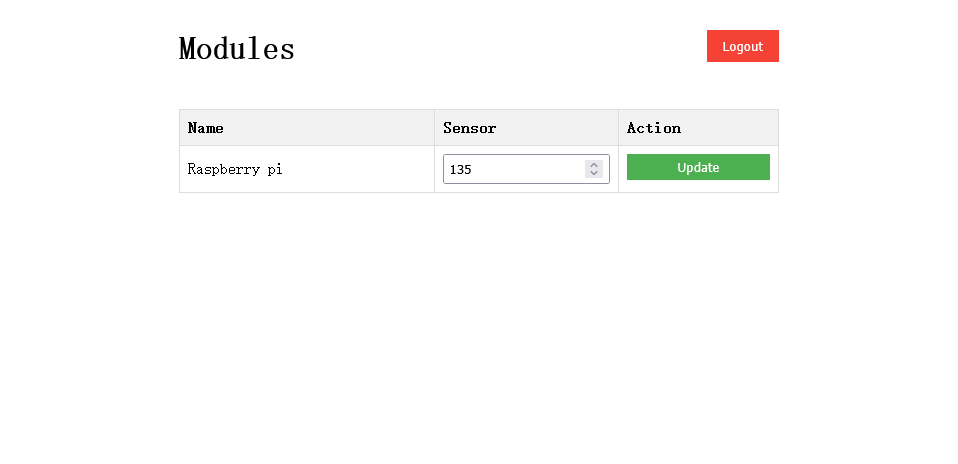

• Control interface display

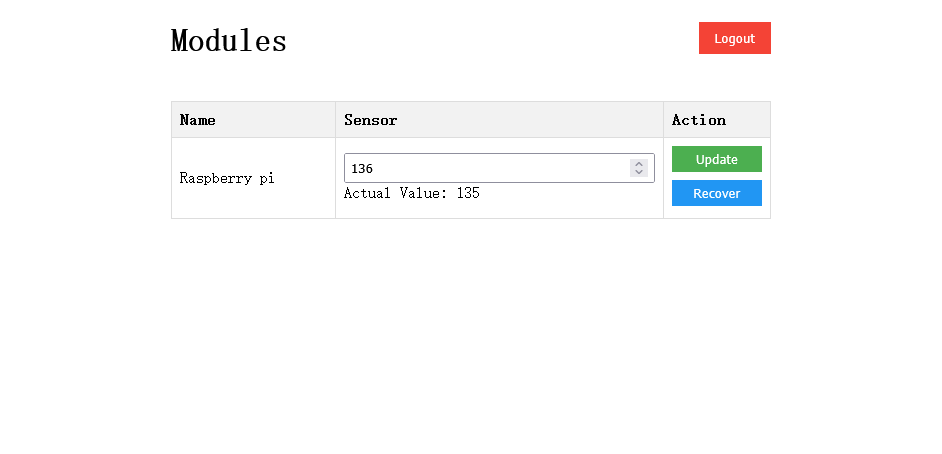

• Unsaved changes warning state

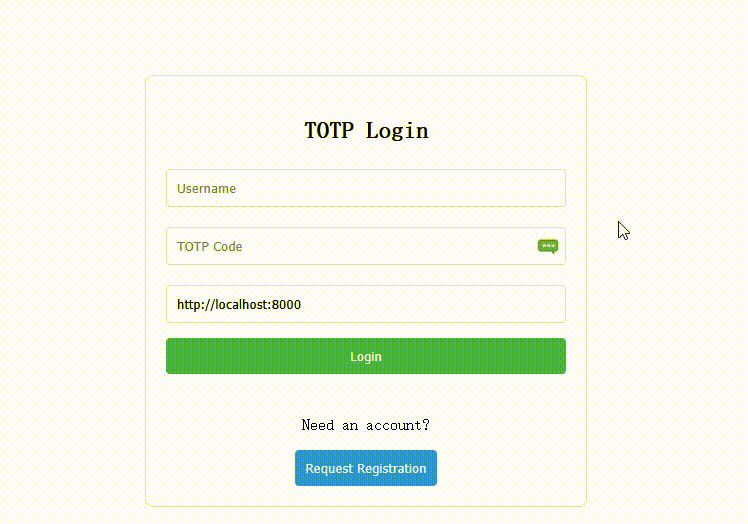

Login Interface

Security Features

• TOTP authentication instead of passwords
• Customizable username as secondary authentication factor
• Enforced two-factor authentication

Frontend Design

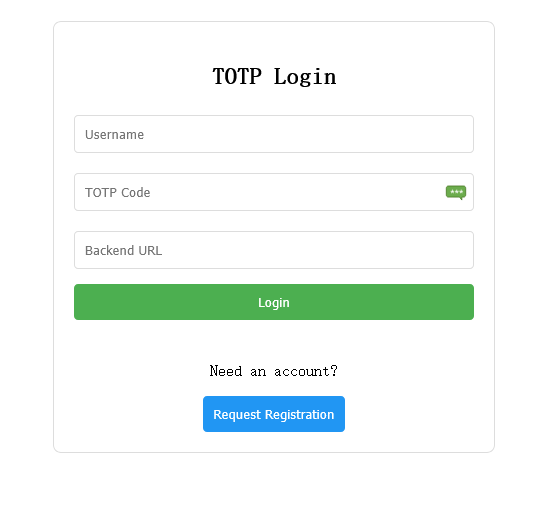

Standard login form with fields for:

• Username
• TOTP code
• Backend URL

API Design

Send authentication request to user-specified backend containing username and TOTP. Backend returns verification result and token.

Testing Issues & Solutions

Frozen interface due to invalid backend

Solution: Implement timeout mechanism for connection attempts with user notification

Deployment

Build project using Node.js build command, deploy generated dist directory via Nginx or Cloudflare.
